Description
LOCK / DOOR SENSOR
All our equipment has locks and open door sensors, to guarantee the security of the stored products by controlling opening time and fans functioning.
LED LIGHTING
The use of LED lighting reduces the energy consumption and improves the homogeneity of the temperature inside the cabinet.
FLEXIBLE STORAGE SOLUTIONS
Our new shelf / drawer system allows you to adjust their position, vary their number, change shelves for drawers and vice versa or compliment them with divisors. This provides the fit of the equipment to your needs and storage convenience of medications or vaccines of different sizes.
DOOR STYLE
It is possible to choose solid or glass doors in our whole range. All our doors are hinged and reversible.
EASY REMOVABLE DOOR GASKET
It is ideal to maintain optimal hygiene and facilitate maintenance work.
ROUNDED CORNERS
The interiors have rounded corners, which facilitate their cleaning.
BATTERY
Allows the maintenance of temperature and alarms register in case of a power failure.
INVERTER
INVERTER technology (Pharma CARE PLUS range models) with high energy efficiency and low energy consumption.
FREEZING PROTECTION ELECTRONIC CONTROLLER
Safety thermostat prevents the temperature dropping below +2ºC.
EVAPORATION PAN
Our equipment has a built-in tray to evaporate automatically defrosted water.
ADVANCED DEFROST SYSTEM
Built-in to ensure uniform cooling over time and to facilitate maintenance. In addition, the equipment analyses its operation and only defrosts when it is necessary, to improve the stability of the temperature.
NATURAL HC COOLING GAS
CFC´s and HCFC´s free, biodegradable.
CASTERS / ADJUSTABLE LEGS / HEIGHT REGULATORS
In our whole range, there is a possibility to incorporate casters to facilitate displacement and cleaning.
Technical Specifications
| MODEL | PTR40IG |
| Temperature range | +2 / +8 |
| Gross Capacity (liters) | 413 |
| Exterior dimensions (mm) | 670x683x1963 |
| Interior dimensions (mm) | 568x504x1338 |
| Door opening (mm) | 568x1280 |
| Insulation tickness (mm) | 50 |
| Exterior finishing | White plastic coated galvanized steel |
| Interior finishing | White plastic coated galvanized steel |
| Drawers Number | 7 |
| Drawer size (LxD) | 500x443 |
| Drawer material | Epoxy coated galvanized steel |
| Interchangeable Shelves/Drawers | Yes |
| Door type | Glass |
| Lock | Yes |
| USB port | Yes |
| Datalogger | Yes |
| Battery | Yes |
| Product tempeature simulation probe | Optional |
| Freezing protection controller | Yes |
| Interior room temperature probe | Yes |
| Controller type | Digital Plus |
| Refrigerant type | R600a |
| Electric power (W) | 152 |
| Voltage/Phases/Frecuency | 230/50 |
| Weight (kg) | 153 |
* Measured at +25ºC ambient temperature
DIGITAL PLUS CONTROLLER
DIGITAL PLUS CONTROLLER
CONNECTIVITY
Possibility of monitoring via Bluetooth or WIFI.
USB
Easy download of data logs and alarms.
TOUCH SCREEN
Easy and intuitive.
Standard 5".
Optional 7" in some models
RS485 COMMUNICATION PORT MODBUS
Connects the system with PC or network.
BATTERY
Allows the maintenance of temperature and alarms register in case of a power failure.
STABILITY AND UNIFORMITY
Product stability range of approximately ±1°C and product uniformity temperature less than ±2°C.
DIFFERENT LANGUAGES SELECTION OPTION
Spanish, English,Italian, French, German,Turkish and Polish.
VARIETY OF OPTICAL AND ACOUSTIC ALARMS
Temperature rise or fall, power failure, low battery, open door, compressor maintenance, dirty condenser…
REMOTE ALARM SIGNAL
Potential free contact, allows the transfer of warning signals to an external system.
DISPLAY:
Accuracy of 0.1°C.
PRECISE CONTROL:
PT1000 probes
STABILITY AND UNIFORMITY:
Product stability range of approximately ±1°C and product uniformity temperature less than ±2°.
DATALOGGER
Temperature log and alarm history
DETAILED EQUIPMENT INFORMATION
5 inches Graphic interface indicating maximum and minimum temperatures
CONFIGURATION ASSISTANT
Welcome page for quick and easy
configuration by choosing the main controller parameters
LOCK CODE
Lock code to access the control system
CONFIGURABLE USERS
Permission management to different users
Downloads & CAD

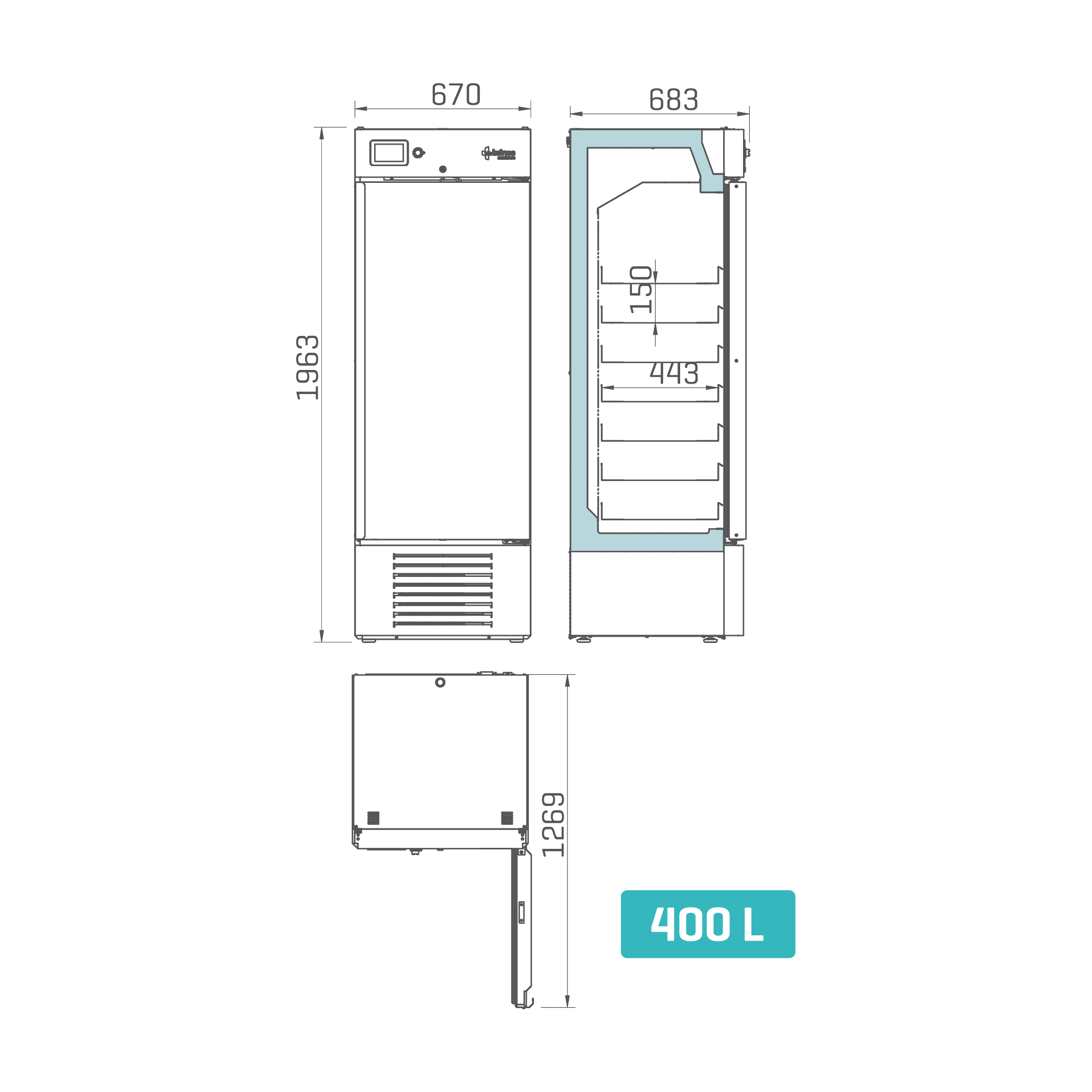

Dimensiones
* The image shown may not correspond to the required product. Please confirm the features you need. We reserve the right to modify technical and construction specifications without prior notice.
