POLAR MAX SERIES

Standard coating of galvanised metal plate painted with white food-certified paint, colour RAL 9010 and protective film

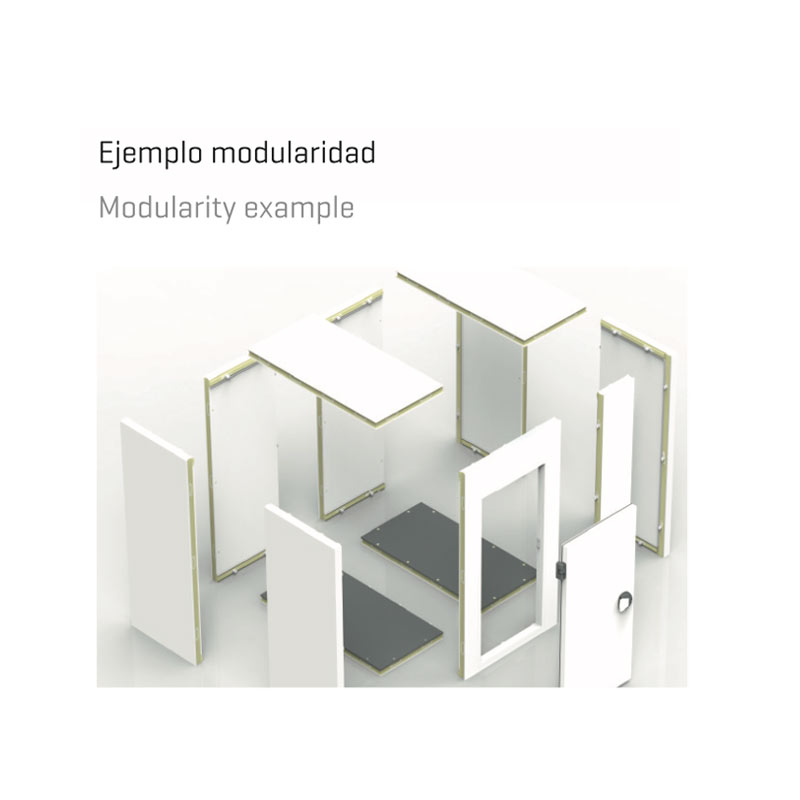

Modularity each 200 mm

Descargas / CAD

* La imagen mostrada puede no corresponder con el producto requerido. Por favor, confirme las dimensiones que necesite.
Categories: , Tag:

Description

Panel. Standard coating of galvanised steel painted with white foodcertified paint, colour RAL 9010 and protective film

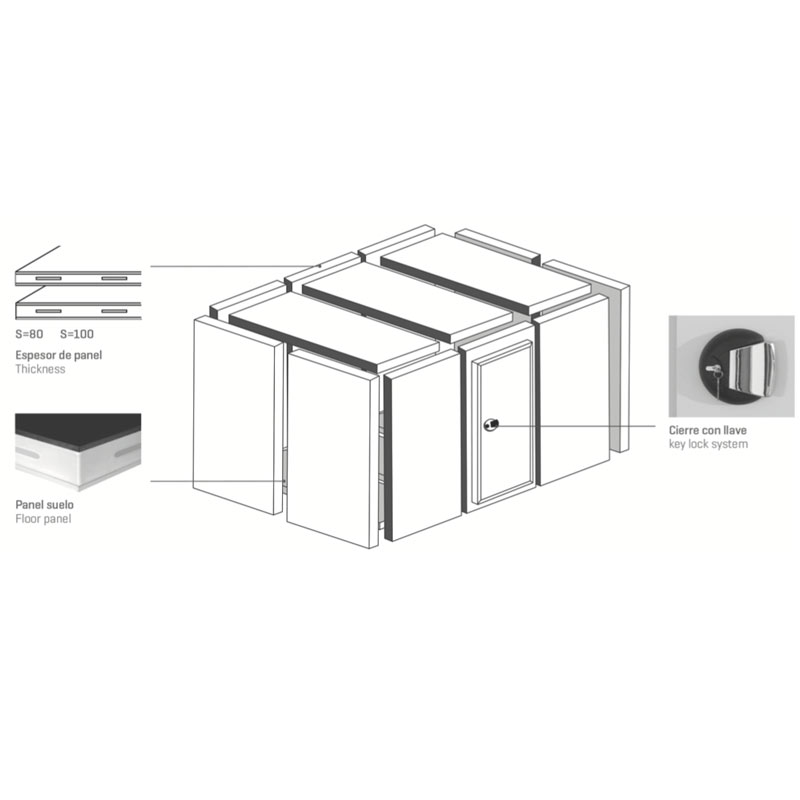

Floor Panel Innerside in stainless steel AISI 304 interior. White painted galvanised steel exterior.

Thickness Insulation. 80mm (Tª +) 100mm (Tª – ). CFC´s-free polyurethane injected at high pressure with a density of 43-45 kg/m3

Interior dimensions.
Width and depth 124 x 124 cm a 440 x 244 cm (modules of 20 cm).
Height 196 cm – 212 cm – 236 cm -256 cm – 276cm

Exterior dimensions.
Width and depth Interior dimensions + 16 cm (e=80) + 20cm (e=100)
Height with floor Interior dimensions + 18 cm (e=80) + 20cm (e=100)
Height without floor Interior dimensions + 8 cm (e=80) + 10cm (e =100)

Profiles. Perimeter tubular profiles made of PVC with sanitary rounded corners.

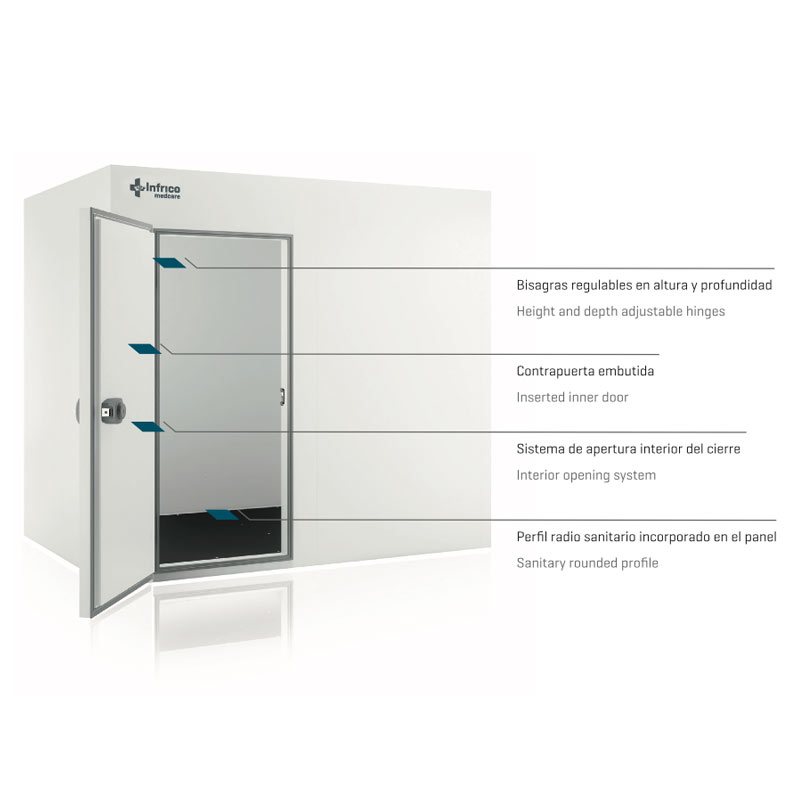

Door. Pivot hinges made of polyamide, aluminium alloy and stainless steel.

Options

  • Alarm.
  • UNE 16599 (1,9 kg, LT 1,20 m)/ Axe.
  • axe´s support.
  • Ramp.
  • Freezing kit (frame heater door and compensation valve of pressure).
  • Change of door:
  • Special hinger door (up to 1000 mm lenght)
  • Standard sliding door
  • Special sliding door (up to 1000mm)

Modular panel

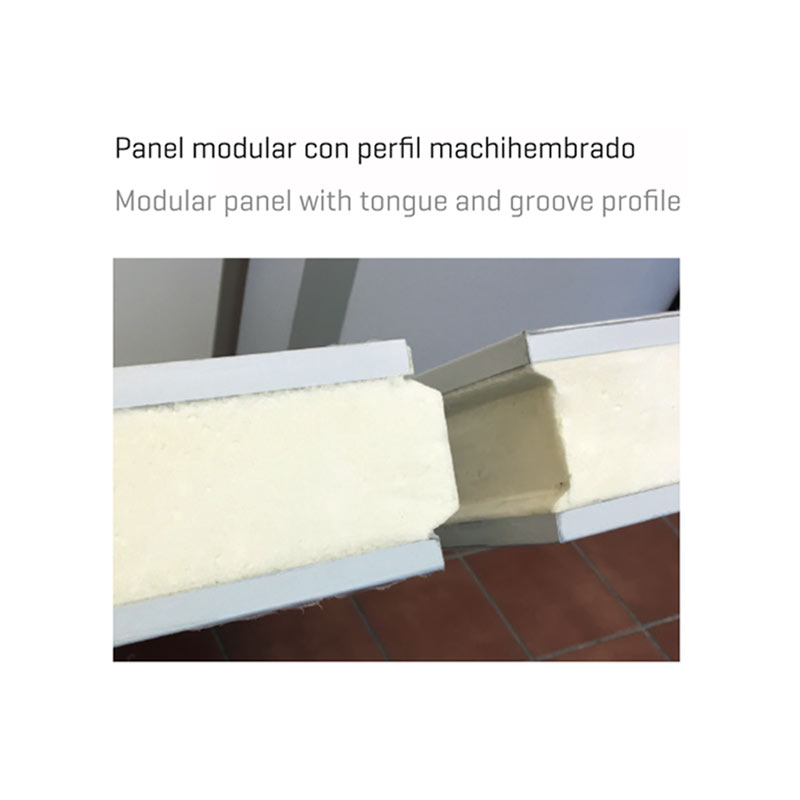

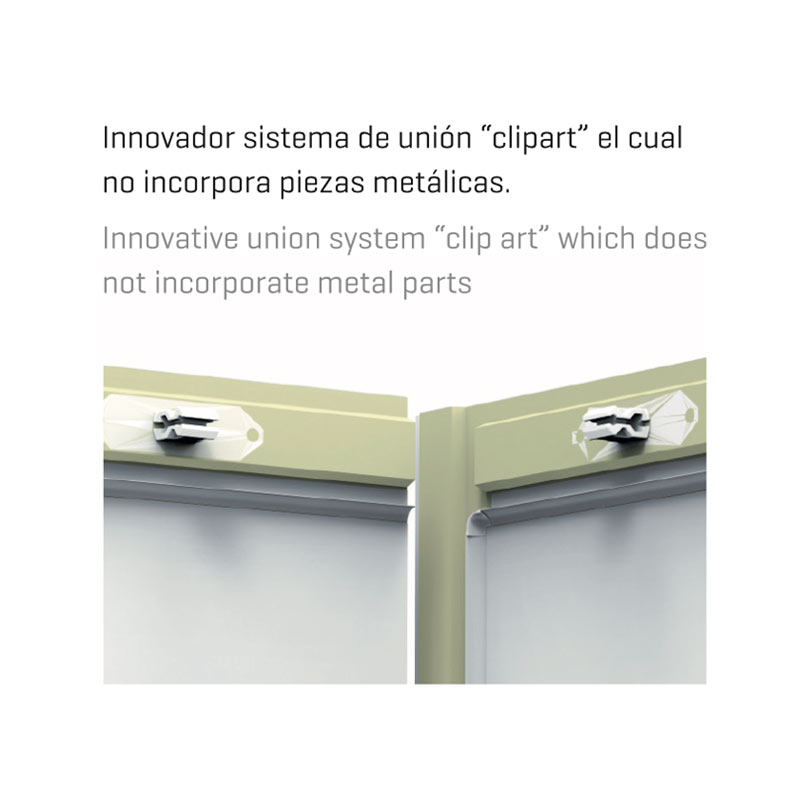

- Modular panel with tongue and groove profile that gives the assembly an absolute airtightness, resulting in perfect joints in its entirety. - Innovative union system “clip art” which does not incorporate metal parts

Downloads & CAD

* The image shown may not correspond to the required product. Please confirm the features you need. We reserve the right to modify technical and construction specifications without prior notice.
